Enquire about this product.

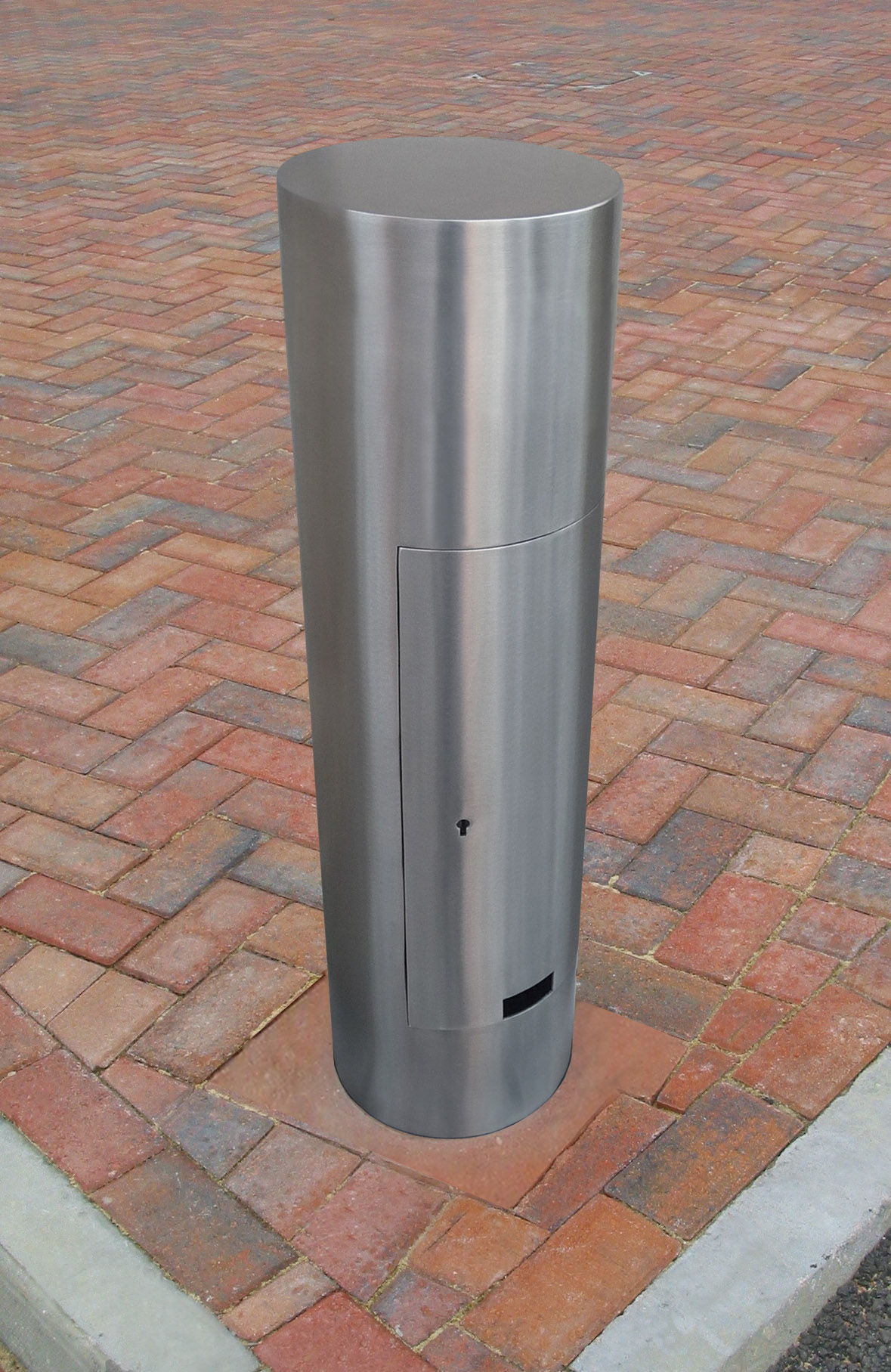

Part of the Zenith range, the Zenith Service Bollard is designed to house electricity or water supply points, allowing an easily accessible source of power. Ideal for market traders, recreational grounds, parks and camping sites.

Materials & Options

Codes & Dimensions

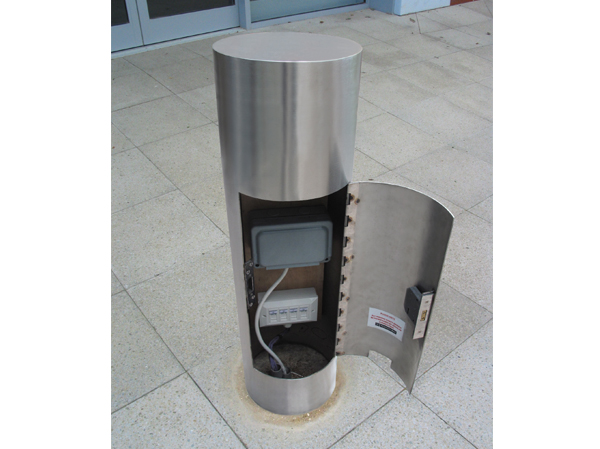

The bollards have a 190mm timber backboard in the internal structure, which provides an ideal mounting point for either electric or water service units.

A lockable hinged door provides protection from vandalism and prevents unauthorised use. An access hole at the base of the door allows cables to pass through and an earthing bolt is supplied as standard.

Product	Code	Above Ground (mm)	Below Ground (mm)	Diameter (mm)	Weight (kg)
Zenith Service Bollard, stainless steel, root fixed	ZEN707 S	900	300	250	23
Zenith Service Bollard, stainless steel, base plated	ZEN707B S	900	-	250	26

Zenith Service Bollard lo

Materials & Options

Material

Stainless steel – G304 or G316 satin polished

Add on

Reflective tape

Zenith Service bollard installation

Installation

Root fixed

Foundation depth is usually the same as the root depth of the bollard
Minimum recommended foundation is the root diameter plus 200mm
Concrete mix to 25 newtons

Base plated

Ø400mm base plate with 4no fixing holes to take M16 bolts (maximum)
Fixings not supplied

Architect drawing

Looking to specify with NBS?

Use the NBS 'Add to spec' button to include in your specification
