    Sheffield Cycle Stand

    Enquire about this product.

    Please select your option
    Cycle Stand
    Please select your option
    Cycle Stand Finish
    Please select your option
    Installation
    Materials & Options
    Installation
    Codes & Dimensions
    Toast Rack Specs
    Brochure

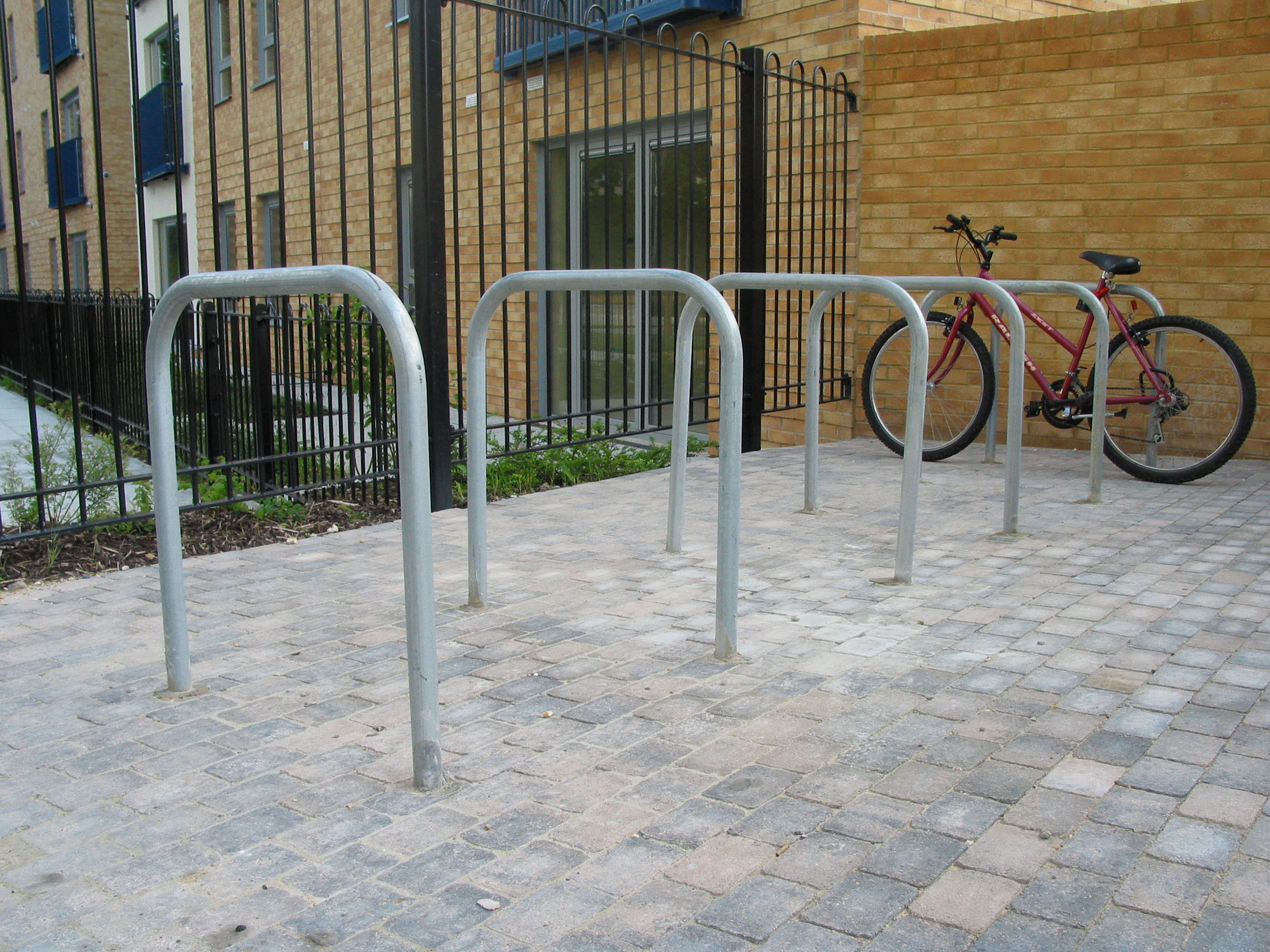

    Simple but effective, Sheffield is a cost-effective hoop style cycle parking solution that doesn’t compromise quality.

    Manufactured in robust circular section tube, we offer the Sheffield range in both mild steel and stainless steel and in two widths – also available as a rooted version for in-ground fixing or with a base plate for bolting down.

    Further options include a tapper rail designed to aid the visually impaired and reflective bands (available in a choice of colours for visual contrast with the stand metalwork) for improved visibility.

    Carbon steel

    Stainless steel

    sheffield cycle stand black

    Materials & Options

    Materials & Finishes

    • Stainless steel – G304 or G316 bright polished
    • Stainless steel – G304 or G316 satin polished
    • Mild steel – galvanised finish
    • Mild steel – polyamide finish

    Options

    • Bolted down or root fixed
    • Reflective tape
    • Tapper rails
    Row of steel cycle stands

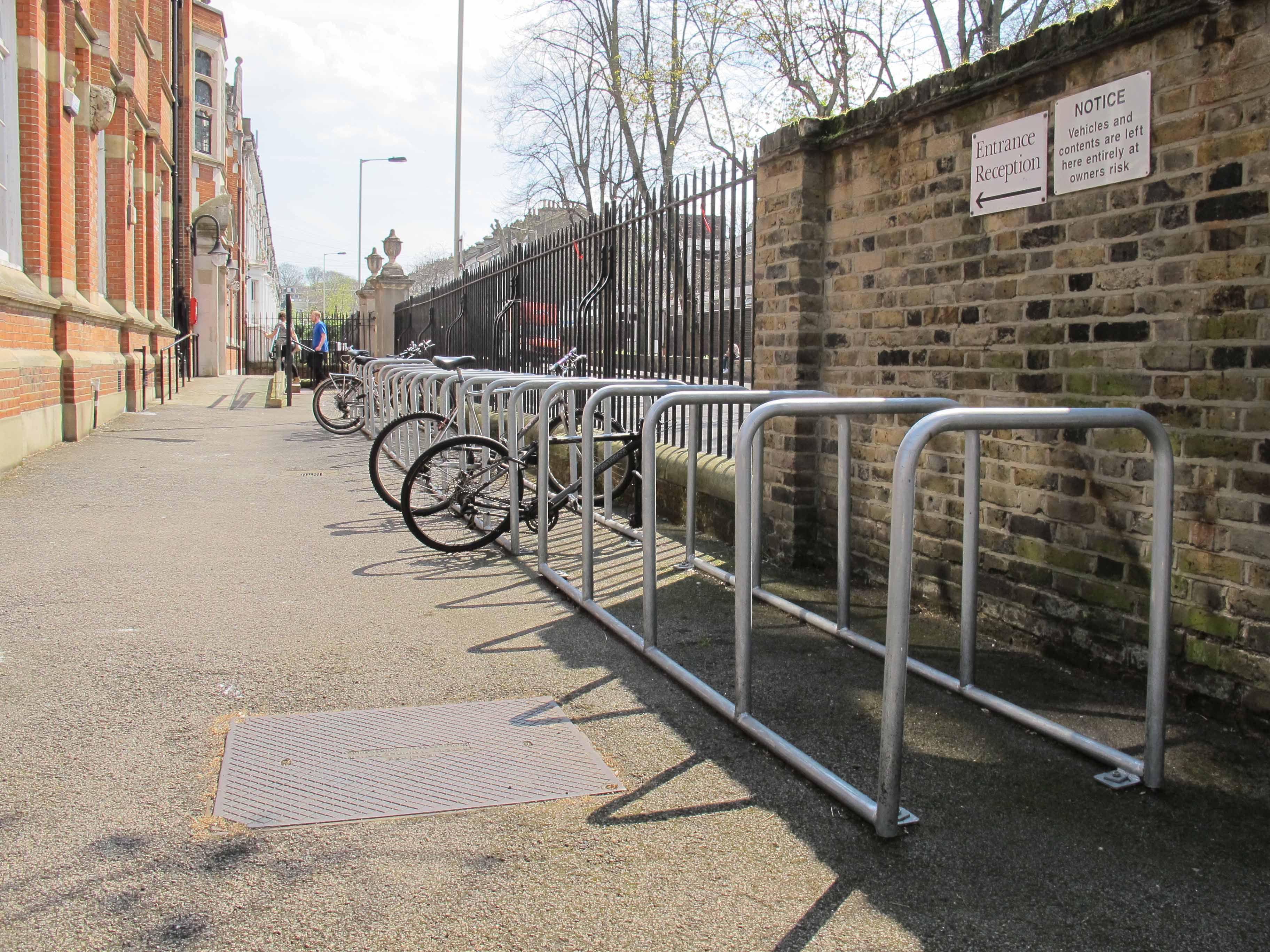

    Sheffield Toast Rack

    Free-standing Cycle Parking

    For a freestanding cycle parking solution, we offer the Sheffield Toast Rack. It’s also manufactured from recycled steel and comes either galvanised, black Polymide or in stainless steel. For scale, a 2-rack configuration accommodate 4 bicycles.

    Options

    • Stand configurations: 2, 3, 4 or 5 racks
    • Finishes: Galvanised | Black Polymide with Galvanised Runners | Stainless Steel – G305 satin polish

    Dimensions

    • Heights: 825mm | 775mm
    • Lengths x Widths: 870x750mm | 1650x750mm | 2470 x 750mm | 3270x750mm
    Product Codes
    sheffield drawing

    Installation

    Root fixed

    • Foundation depth is usually the same as the root depth of the cycle stand
    • Minimum recommended foundation square is the root diameter plus 200mm
    • Concrete mix to 25 newtons

    Bolt down

    • Base plates have 2no fixing holes to take Ø14mm ground fixings. Fixings not supplied.

    Product Codes & Dimensions

    You can find our most popular specifications in the table below - but you can find the codes for further sizes, specs and finishes for the Sheffield in the cycle stands brochure.

    Sheffield Cycle StandProduct CodesTube DiameterWidth (mm)Height (mm)
    Galv Steel + Root fixedSHE6-7535-75-GAØ48750mm750mm Above Ground

    350mm Below Ground

    Galv Steel + Base platedSHE6BASE-75-75-GAØ48750mm750mm
    Galv Steel + Root FixedSHE6-7535-10-GAØ481000mm750mm Above Ground

    350mm Below Ground

    Galv Steel + Base platedSHE6BASE-75-10-GAØ481000mm750mm
    Stainless Steel + Root FoxedSHE6-7530-75-S4Ø51750mm750mm Above Ground

    350mm Below Ground

    Stainless Steel + Base platedSHE6BASE-75-75-S4Ø51750mm750mm
    Stainless Steel + Root FixedSHE6-7530-10-S4Ø511000mm750mm Above Ground

    350mm Below Ground

    Stainless Steel + Base platedSHE6BASE-75-10-S4Ø511000mm750mm

    Downloads

    For more in-depth info, help yourself to the Cycle Parking brochure - or get in touch with our sales team.

    Cycle Parking Brochure
