RailRoad Integrated Seat & Planter

Aligned-Images_0001_Railroad-Modular-(61)

Railroad Seating & Planters

Use our digital tool to configure the modular RailRoad range in continuous seating runs with integrated planters and more.

Create your perfect scheme now.

Two support styles
Modules: Independent (straight seating only) | Start | Mid | End

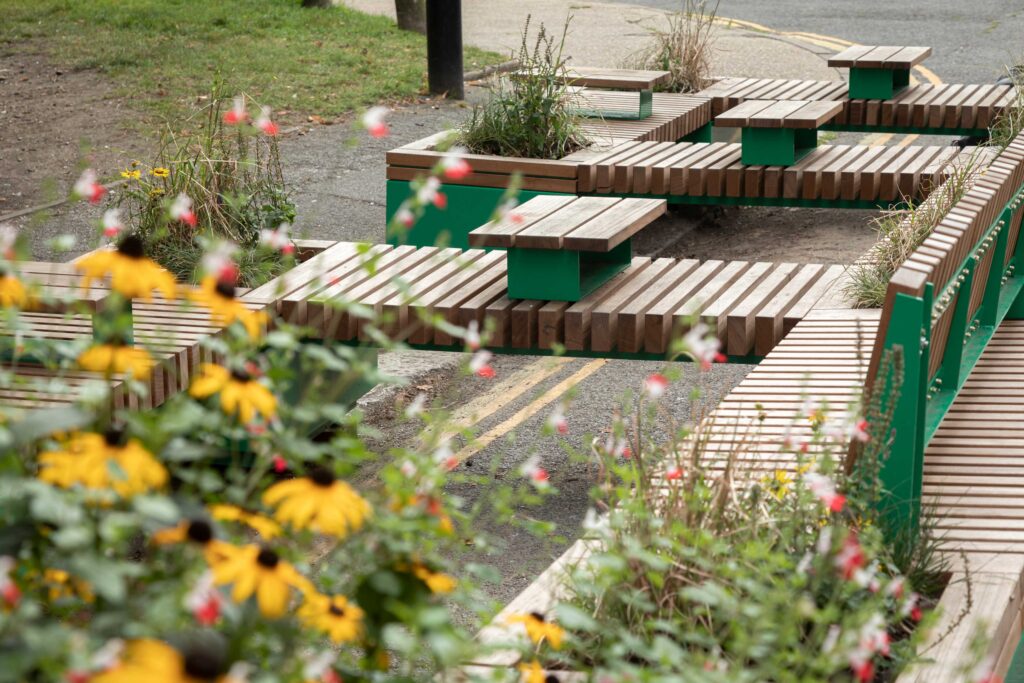

Integrated planters
Backrests, armrests, tablets & chaise-longues
Steelwork triple processed PPC to any standard RAL
Timbers: FSC Iroko
Surface mount or in-ground installation

Delta

Support Style
Open frame design

Timber Style
Square- form straight slats

Installation Options
Bolt-down or Freestanding only

Loop

Support Style
Central circular posts

Timber Style
Square- form straight slats

Installation Options
Bolt-down, Freestanding or In-ground

The Seating

Independent or continuous runs of straight & curved modules

RailRoad benches come in standard modules (independent, start, mid and end units) that will comfortably fit 2 people. Just like train tracks, you can mix the straight and curved modules to create unique configurations.

Independent module: 1950mm length
Start and end modules: 1615mm length
Mid modules: 1300mm length
All bench modules are 700mm depth
Curved module radii options : R1.25m Centreline | R2.50m Centreline | R3.75m Centreline

Start and end units include a small extension at one end to offer an accent to the seating.

View product codes and dimensions

Lady sitting on Railroad bench on her phone at bristol quaker friars

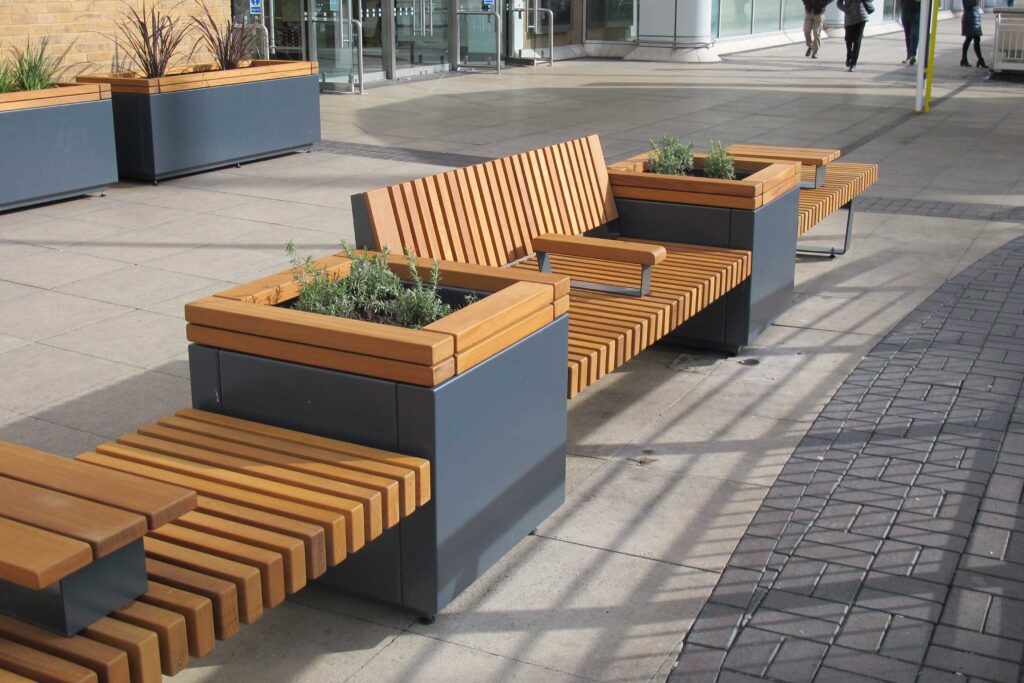

The Planter

Integrated or Freestanding Planting

Brighten up landscapes and integrate the RailRoad Planter with any seating configuration. It’s manufactured from thick recycled steel with a PPC finish to any standard RAL and a beautiful Iroko timber top that also serves as a seating perch.

3mm thick recycled steel
Cube and rectangular shapes
Available in two heights: 470mm or 720mm

Specify as part of your seating configuration or independently. See the RailRoad brochure for all the technical info.

See Independent Planter

Loop Support - Independent Bench

Product Codes & Dimensions

Loop

Comprising one strong circular post, our Loop support option is visually softer. Perfect for in-ground installations but can also be bolted-down.

1950mm length – Independent Bench
RRBLR7 1950-TP

All bench modules are 700mm wide

Railroad independent bench with loop supports 1

Delta Support - Independent Bench

Product Codes & Dimensions

Delta

An open frame design made from heavy-duty steel that still gives a visually light aesthetic. Our Delta supports allow for freestanding solutions but can also be bolted down. No in-ground available.

1950mm long – Independent Bench
RRBDA7 1950-TP

All bench modules are 700mm wide

Railroad independent bench with delta supports 1

Backrest - Independent Bench

Product Codes & Dimensions

Backrest

We offer a standard backrest which can be combined with the RailRoad independent bench to form a seat.

1950mm length – RRBACK-TP

Loop Support - Straight Modules

Loop

Comprising one strong circular post, our Loop support option is visually softer. Perfect for in-ground installations but can also be bolted-down.

Module	Length (mm)	Width (mm)	Code
Start	1615	700	RRBLS7-S-TP
Mid	1300	700	RRBLS7-M-TP
End	1615	700	RRBLS7-E-TP

Modules

Our RailRoad modules come in in start, mid and end pieces that can fit upto 2 people each. You can connect these at various points to create your configuration.

**End modules have an extension with 5 additional timbers on one side and are reversible.

Delta Support - Straight Modules

Delta

An open frame design made from heavy-duty steel that still gives a visually light aesthetic. Our Delta supports allow for freestanding solutions but can also be bolted down. No in-ground available.

Module	Length (mm)	Width (mm)	Code
Start	1615	700	RRBDS7-S-TP
Mid	1300	700	RRBDS7-M-TP
End	1615	700	RRBDS7-E-TP

Modules

Our RailRoad modules come in in start, mid and end pieces that can fit upto 2 people each. You can connect these at various points to create your configuration.

**End modules have an extension with 5 additional timbers on one side and are reversible.

Loop Support - Curved Modules

Loop

Comprising one strong circular post, our Loop support option is visually softer. Perfect for in-ground installations but can also be bolted-down.

All Start + End Modules – 1615mm Length
Mid Modules – 1300mm length
C/L = Centerline

Module	R1.25M C/L	R2.50M C/L	R3.75M C/L
Start (Left-hand)	RRBLR7-SL125-TP	RRBLR7-SL250-TP	RRBLR7-SL375-TP
Start (Right-hand)	RRBLR7-SR125-TP	RRBLR7-SR250-TP	RRBLR7-SR375-TP
Mid	RRBLR7-M125-TP	RRBLR7-M250-TP	RRBLR7-M375-TP
End (Left-hand)	RRBLR7-EL125-TP	RRBLR7-EL250-TP	RRBLR7-EL375-TP
End (Right-hand)	RRBLR7 ER125-TP	RRBLR7 ER250-TP	RRBLR7 ER375-TP

Modules

Our RailRoad modules come in in start, mid and end pieces that can fit upto 2 people each. You can connect these at various points to create your configuration.

**End modules have an extension with 5 additional timbers on one side and are reversible.

Delta Support - Curved Modules

Delta

An open frame design made from heavy-duty steel that still gives a visually light aesthetic. Our Delta supports allow for freestanding solutions but can also be bolted down. No in-ground available.

All Start + End Modules – 1615mm Length
Mid Modules – 1300mm length
C/L = Centerline

Module	R1.25M C/L	R2.50M C/L	R3.75M C/L
Start (Left-hand)	RRBDA7-SL125-TP	RRBDA7-SL250-TP	RRBEDA7-SL375-TP
Start (Right-hand)	RRBEDA7-SR125-TP	RRBDA7-SR250-TP	RRBDA7-SR375-TP
Mid	RRBDA7-M125-TP	RRBDA7-M250-TP	RRBDA7-M375-TP
End (Left-hand)	RRBDA7-EL125-TP	RRBDA7-EL250-TP	RRBDA7-EL375-TP
End (Right-hand)	RRBDA7 ER125-TP	RRBDA7 ER250-TP	RRBDA7 ER375-TP

Modules

Our RailRoad modules come in in start, mid and end pieces that can fit upto 2 people each. You can connect these at various points to create your configuration.

**End modules have an extension with 5 additional timbers on one side and are reversible.

Straight Backrest Modules

Straight backrests

Each RailRoad module has it’s counterpart backrest module so you can put multiple backrests at different points in your seating configuration for even more dynamic solutions.

Start module – RRBACK-S-TP

Mid module – RRBACK-M-TP

End module – RRBACK-E-TP

Curved Backrests Modules - External Curve

External Curve - Backrest Module

We offer two types of curved backrest modules – with an internal or external curve.

Module	R1.25M Centerline	R2.50M Centerline	R3.75M Centerline
Start	RRBACK-S125E-TP	RRBACK-S250E-TP	RRBACK-S375E-TP
Mid	RRBACK-M125E-TP	RRBACK-M250E-TP	RRBACK-M375E-TP
End	RRBACK-E125E-TP	RRBACK-E250E-TP	RRBACK-E375E-TP

Curved Backrest Modules - Internal Curve

Internal Curve - Backrest Module

We offer two types of curved backrest modules – with an internal or external curve.

Module	R1.25M Centerline	R2.50M Centerline	R3.75M Centerline
Start	RRBACK-S125N-TP	RRBACK-S250N-TP	RRBACK-S375N-TP
Mid	RRBACK-M125N-TP	RRBACK-M250N-TP	RRBACK -M375N-TP
End	RRBACK-E125N-TP	RRBACK-E250N-TP	RRBACK-E375N-TP

Standard

Standard recycled steel armrests that can be pre or retro fitted between any two timber slats on a bench or seat.

Armrest for bench
80mm wide
RRA-B-TP

Armrest for seat (with backrest)
80mm wide
RRA-S-TP

Timber-topped

Standard recycled steel armrests with an iroko timber slat on top for added comfort.
At 110m wide the flat timber is suitable for placing small items such as coffee cups on to.

Armrest for bench
110mm wide
RRAT B-TP

Armrest for seat (with backrest)
110mm wide
RRAT-S-TP

Tablet surface

Iroko timber topped tablet surface ideal for accommodating laptops, newspapers or a tablet device.

Tablet for bench
350mm wide
RRTT B-TP

Tablet for seat (with backrest)
350mm wide
RRTT-S-TP

Single

Straight benches are available with chaise-longue backrests that can be pre- or retro-fitted.

Single sided
RRCH1-TP

Independent Planters

Product Codes and Dimensions

Choose from 2 heights

Standalone RailRoad planters come in 2 heights, adjustable feet are supplied.

Planter Height: 470mm

700mm x 700mm | 65kg
RRP2T-7070/47-TP

1150mm x 700mm | 86kg
RRP2T-1157047-TP

1540mm x 700mm | 105kg
RRP2T-15470/47-TP

1930mm x 700mm | 127kg
RRP2T-19370/47-TP

Planter Height: 720mm

700mm x 700mm | 82kg
RRP2T-7070/72-TP

1150mm x 700mm | 108kg
RRP2T-11570/72-TP

1540mm x 700mm | 130kg
RRP2T-15470/72-TP

1930mm x 700mm | 152kg
RRP2T-19370/72-TP

Railroad planter water and drainage diagram

Integrated Modular Planters - 470mm High

Product Codes and Dimensions

RailRoad planters can also be integrated with other RailRoad seating modules – you will find the codes for each module below. If you need a standalone solution, choose “independent planters“.

700mm Width

End Module – RRP2T-7070/47E-TP
Mid Module – RP2T-7070/47M-TP
Corner Module – RRP2T-7070/47L-TP
T-Junction Module – RRP2T-7070/47T-TP
Cross Module – RRP2T-7070/47X-TP

1150mm Width

End Module – RRP2T-11570/47E-TP
Mid Module – RRP2T-11570/47M-TP

Integrated Modular Planters - 720mm High

Product Codes and Dimensions

700mm Width

End Module – RRP2T-7070/72E-TP
Mid Module – RP2T-7070/72M-TP
Corner Module – RRP2T-7070/72L-TP
T-Junction Module – RRP2T-7070/72T-TP
Cross Module – RRP2T-7070/72X-TP

1150mm Width

End Module – RRP2T-11570/72E-TP
Mid Module – RRP2T-11570/72M-TP

Bridge Seating Unit

Product Codes and Dimensions

When integrating RailRoad seating with some its planter modules, sometimes a bridge seating unit is needed. Our team will advise you on whether you need them depending on your configuration.

Straight
RRBXS7-M-TP

Curved with Radius R125
RRBXS7-M125-TP

Curved with Radius R250
RRBXS7-M250-TP

Curved with Radius R375
RRBXS7-M375-TP
