DST 350

Hoop cycle stand

Hoop cycle stand

Enquire about this product.

Materials & Options

Codes & Dimensions

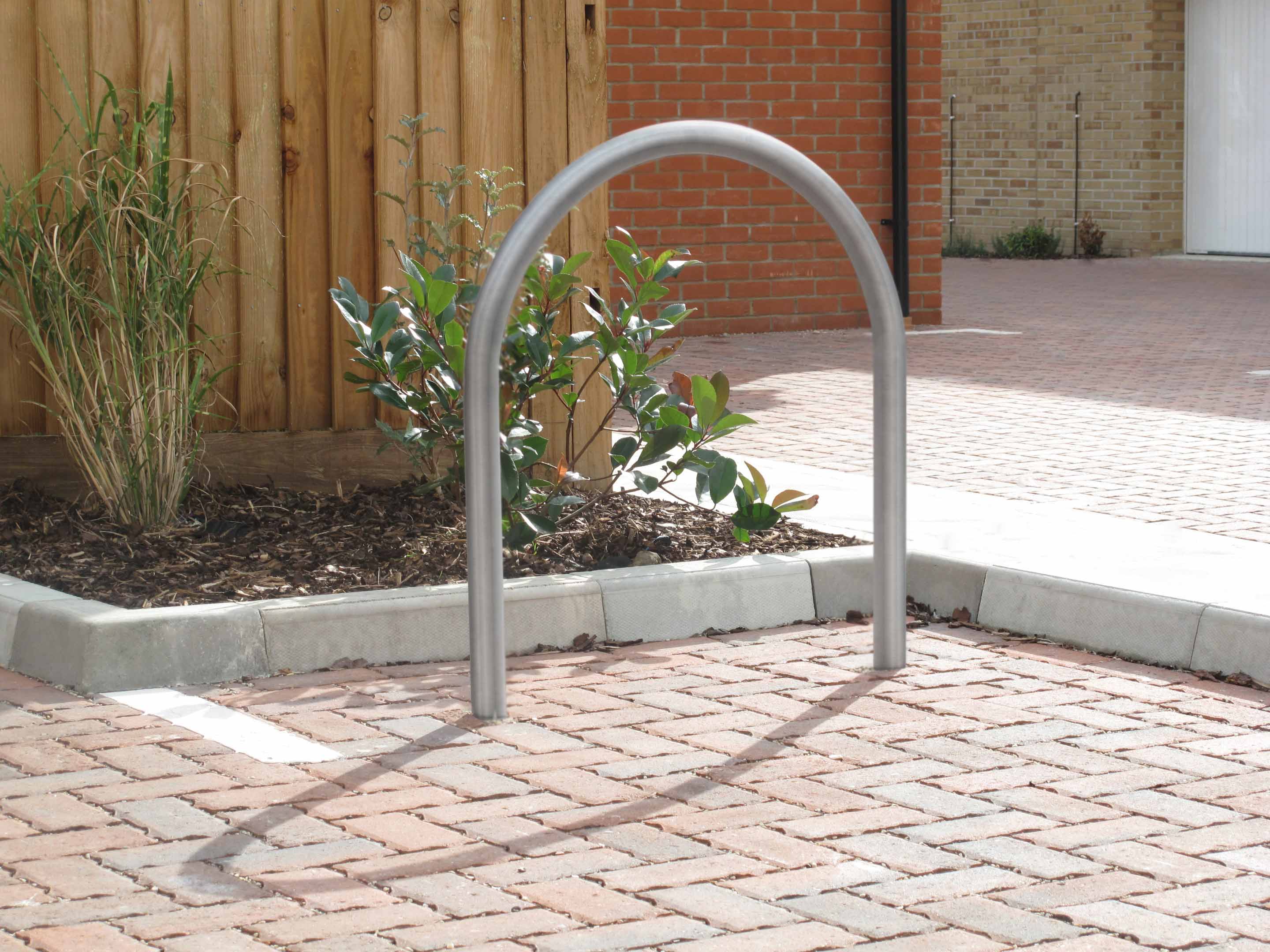

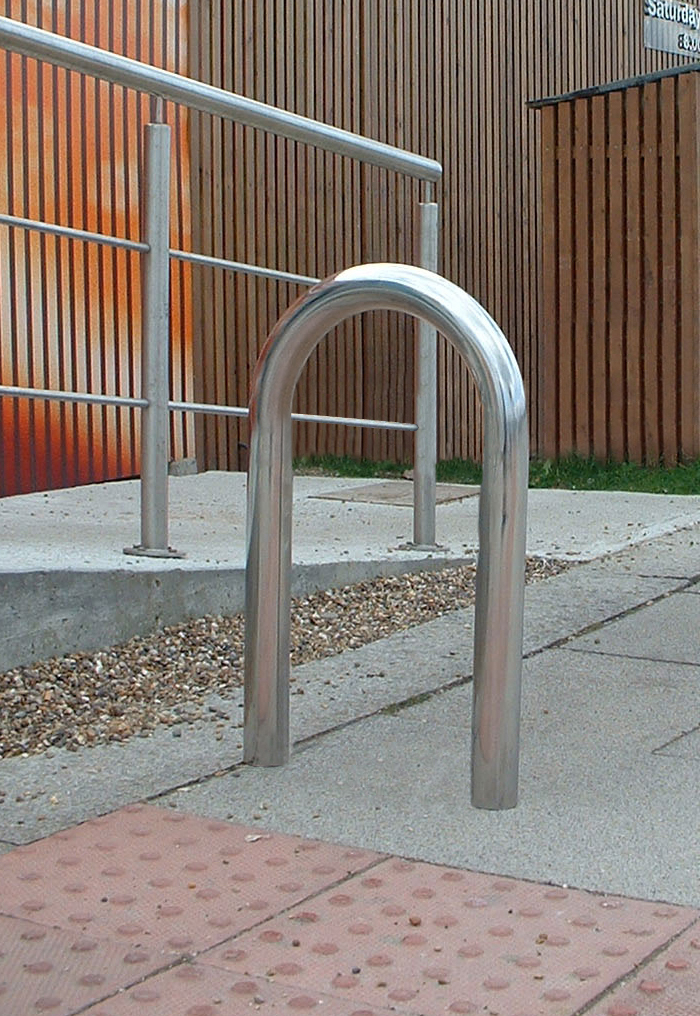

The District cycle stand is a semi-circular hoop design, made from steel recycled steel with a polyamide or plastic coated finish, or stainless steel with a satin or bright finish.

With a thick 48mm diameter tube, the District cycle stand is considerably strong making it ideal as a motorcycle stand. We offer it in 3 standard sizes.

DST 350

Materials & Options

Materials & Finishes

Stainless steel – G304 or G316 bright polished or satin polished
Mild steel – polyamide finish in black

Options

Width: 260mm, 600mm or 750mm
Tube diameter: Ø48
Bolted down or root fixed

Hoop cycle stand

Installation

Root fixed

Foundation depth is usually the same as the root depth of the cycle stand
Minimum recommended foundation square is the root diameter plus 200mm
Concrete mix to 25 newtons

Bolt down

Two base plates 120mm x 100mm x 6mm thick
Each base plate has 4no fixing holes to take Ø10mm ground fixing (maximum)
Fixings not supplied

Nordic Cycle Stand	Product Code	Tube Diameter	Width (mm)	Height (mm)
Stainless Steel Satin - Root Fixed	DST 350 S	Ø48	360mm	600mm Above Ground 300mm Below Ground
Stainless Steel Satin - Root Fixed	DST 600 S	Ø48	600mm	700mm Above Ground 300mm Below Ground
Stainless Steel Satin - Root Fixed	DST 750 S	Ø48	750mm	800mm Above Ground 300mm Below Ground
